YESIDO VC18-EU - Car Pressure Washer

Brand: YESIDO

Model: VC18-EU

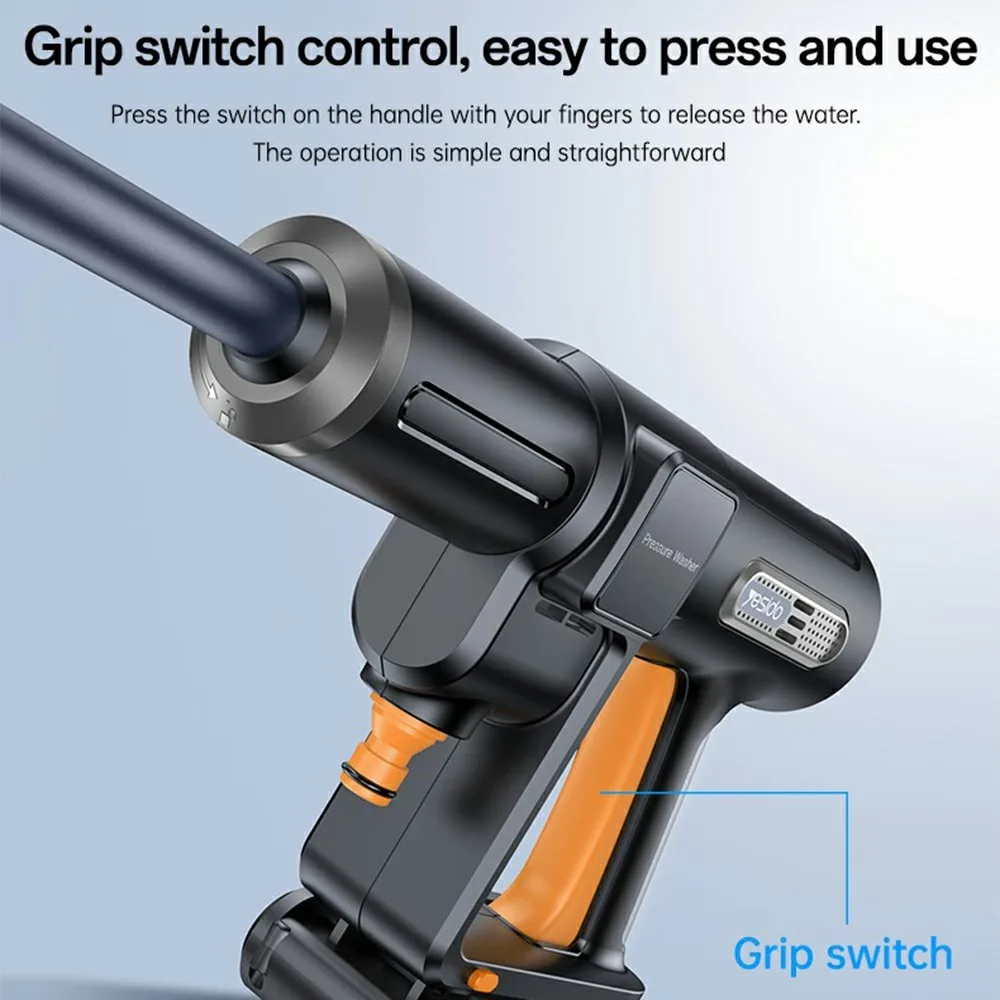

Product Dimensions: 317 x 177 x 81 mm Operating Temperature: 0°C-70°C Rated Voltage: 24V Operating Current: 10A (second gear), 6A (first gear) Maximum Flow Rate: 4L/min (second gear), 2.8L/min (first gear) Maximum Pressure: 3.2MPa (second gear), 2.5MPa (first gear) Maximum Speed: 22,000 rpm Battery Capacity: 6 cells, 12,000mAh Water Pressure Adjustment: High and Low Adjustable with LED Display Battery Life (second gear): ≥20 minutes Battery Life (first gear): ≥40 minutes Motor Control: PID Algorithm Functional Definition: 1. After installing the battery, press the power switch on the display panel to turn on the car washer. The battery indicator and gear indicator lights will both illuminate, displaying the current battery level and gear position. Press the microswitch on the handle to activate the car washer. 2. The gear position is indicated by a blue LED on the display panel. Press the gear up or down to adjust the pressure. 3. When the power switch is turned off, the battery level and gear indicator lights will go out, and the microswitch will become inoperative. The motor will not operate when the microswitch is pressed. 4. The PCBA has a built-in NTC protection function, which automatically shuts
